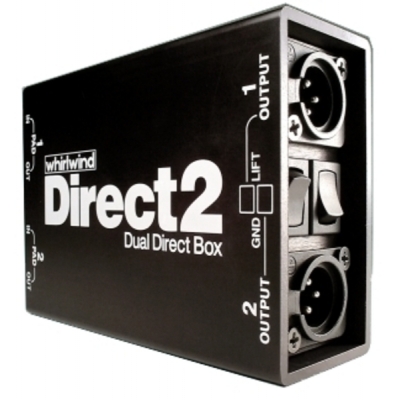

Whirlwind Direct2 - Dual Channel Premium Direct Box
Click to enlarge
The DIRECT2 combines features found on two of our DIRECTOR direct boxes in one unit.
Perfect for converting unbalanced signals from stereo keyboards, acoustic guitar preamps, CD and tape players, computer sound cards, etc.
Each section features:
- 1/4 inch parallel wired in/out jacks
- Ground Lift switch to help eliminate hum and buzz
- -20dB pad switch for connection to hot input signals
- Uses Whirlwinds TRHL-M transformer with metal shield
The input and output grounds of each section are isolated from each other. This allows the DIRECT2 to be used as if it were two completely separate DIs without fear of creating ground loop interaction.
Input Impedance: 2 X 20k Ohms
Output Impedance: 2 X 150 Ohms
Frequency Response: 20Hz-20kHz +/- 1dB
Level Change (input to output): -20dB (pad out), -40dB (pad in)
