QSC KS118 18in 1000w Powered Subwoofer

The QSC KS118 3600w Powered 18" Subwoofer sets a new benchmark in the powered sub field with 136db peak SPL at 1m.



The perfect solution for mobile entertainment, AV rental, event production, clubs and performance venues. Featuring an 18-inch direct radiating driver powered by a 3600 Watt Class D amplifier, the KS118 delivers high sound pressure levels with dynamic and musical sound reproduction of very low frequencies.



On-board DSP optimizes and protects system performance while also offering advanced capabilities such as the ability to array two units in a cardioid arrangement, maximizing low frequency output in front while minimizing unwanted energy around the sides and rear of the system.



Highly transportable, the rugged and stylish premium birch enclosure features comfortable, aluminum handles and four, rear-mounted low noise casters. A top-mounted M20 threaded pole receptacle accepts a 35 mm pole for easy vertical deployment with K.2 Series and other full-range loudspeakers.



As with all our QSC products the KS118 is backed by a global 6-Year Extended Warranty, with product registration.



Key Features:

• Very high output with impressive low frequency performance

• 3600 Watt Class D amplifier module

• 18 inch (460 mm) long excursion direct radiating driver

• Omni-directional or cardioid radiation modes (cardioid setup requires min.2 units)

• Selectable DEEPTM mode for extremely low frequency extension

• Adjustable crossover and delay

• Scenes for commonly-used applications that can be saved/recalled

• Refined, professional and elegant appearance in any application

• Rugged painted wood enclosure for lasting durability

• Vertical or horizontal deployment (M20 threaded pole receiver for vertical setup)

• Four low-noise, heavy-duty casters

• Optional transport cover, KS-LOC security cover and 35 mm loudspeaker pole acces- sories available

• 6-Year Warranty with product registration



Specs:

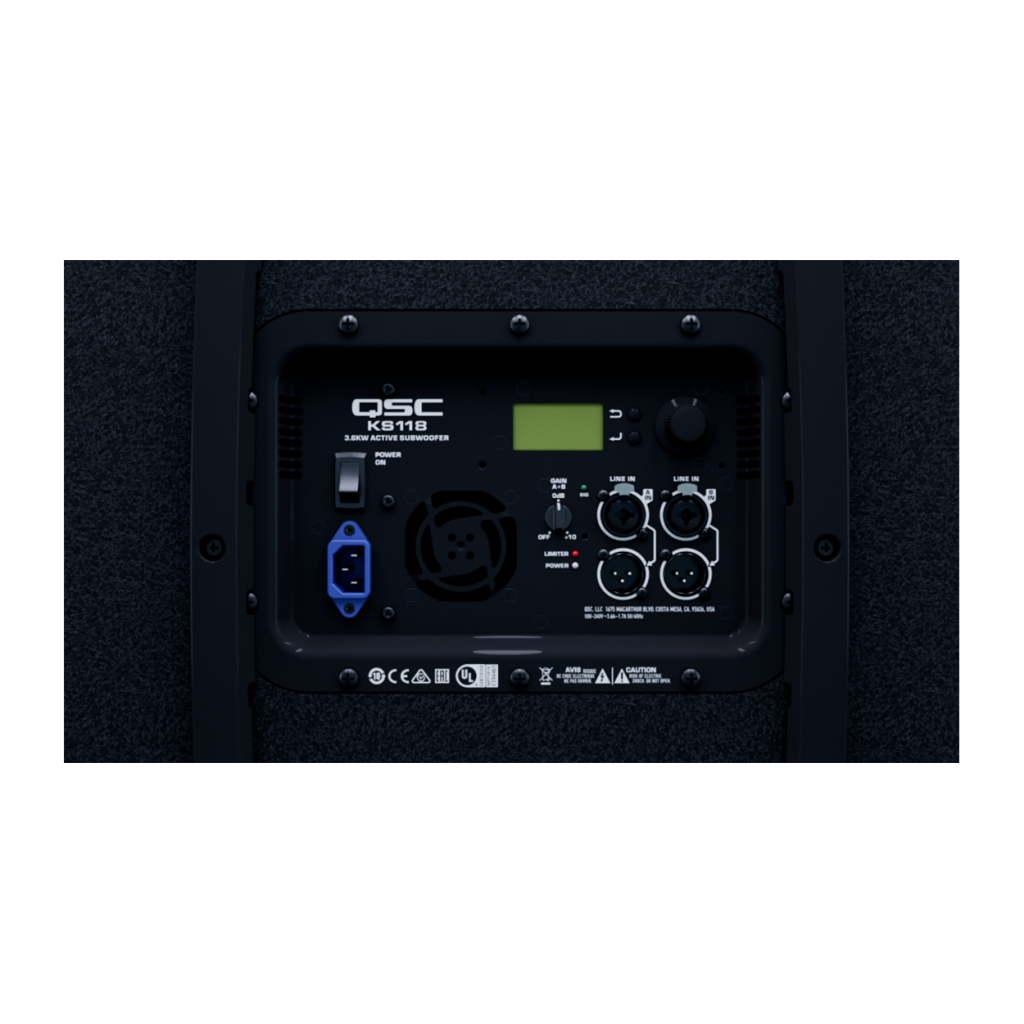

Connectors:

2 x locking XLR/F ¼ in combo

2 x XLR/M (Loop-Thru Output)

1 x Locking IEC Power Connector

AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz

AC Power Consumption (1/8th Power) 100 VAC, 3.6 A / 120 VAC, 3.0 A / 240 VAC, 1.7 A



Enclosure Details:

Enclosure: 18 mm Birch Plywood

Color: Black (RAL 9011)

Grille: 16-gauge Black Powder Coated Steel

Dimensions (HxWxD): 640 x 520 x 785 mm (incl. casters)

25.2 x 20.5 x 30.9 inches (incl. casters)

Net Weight: (including casters) 47 kg (104 lbs)

Shipping Weight: 56.5 kg (124.5 lb)



Included Accessories:

4 x Low-Noise, Heavy Duty Casters



Optional Accessories:

KS118-CVR Transport Cover, KS-LOC Lock-Out Cover

SP-26 and SP-36 Loudspeaker Poles, SP-16X Extension Pole



Frequency Response (-6 dB): 41 Hz - 98 Hz

Frequency Range (-10 dB): 35 Hz - 111 Hz

Nominal Coverage Angle: Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units)

Maximum Rated SPL1: 136 dB @ 1 m (peak)
